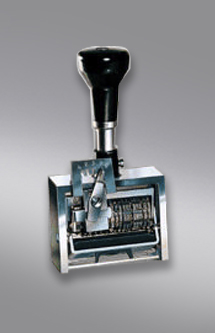

Wide Frame 11 thru 15 Wheels Book and Page Machines

Model	Sample Imprints	Style	Size	Wheels
326		Roman	3/16"	11
327		Gothic	3/16"	11
329		Gothic	3/16"	12
330		Roman	3/16"	12
331		Gothic	3/16"	13
332		Gothic	3/16"	15
Bk/Pg		Roman	7/32"	8
Bk/Pg Left		Roman	7/32"	8

Please Note: Sample imprints may appear larger or smaller than actual size.
Please refer to size specifications or print catalog for accuracy.

Start movie (Length: 2 minutes)


Special features:

• sturdy, heavy-duty machine

• fast, reliable

• exact positioning of imprint due to line indicator at base plate


 Technical Data:

• 11-15 wheels of special alloy,
  5 wheels with automatic action

• With sinking zeros

• Imprint: 0 to 9999999

• Actions: 0x, 1-4x repetition

• Figure size: 4.5 mm / 5.5 mm - 3/16", 7/32"

• Figure style: Gothic or Roman

• Self-inking: pre-inked pad incl. pad holder,
  depends on width of inner frame

• Metal frame, highly finished

• Net weight: about 16 oz. - 21 oz.


Accessories:

• Models 326-331 CAT25 pads and holders
• Models 332 Bk and Pg CAT30 pads and holders
