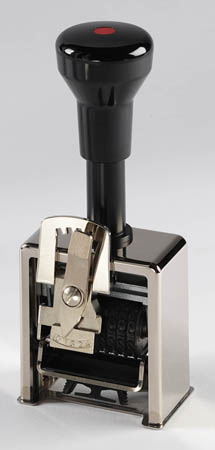

Rubber Face RF Models

Model	Sample Imprints	Style	Size	Wheels
RF 340		Gothic	3/16"	6
RF 343		Gothic	7/32"	6
RF 344		Gothic	1/4"	6
RF 341		Gothic	3/16"	7
RF 342		Gothic	3/16"	8

Special features:

• to print on hard surfaces like wood, glass and steel
• fast, reliable
• exact positioning of imprint due to line indicator at base plate
• can be used with special R9 quick dry ink

Technical Data:

• 6-8 wheels or more with rubber faces, can be customized up to 15 wheels
  5 wheels with automatic action
• Non-sinking zeros
• Imprint: 000000 to 999999
• Actions: 0x, 1-4x repetition
• Figure size: 4.5 mm / 5.5 mm / 6.5 mm - 3/16", 7/32", 1/4"
• Figure style: Gothic
• Self-inking: Colorbox Ink-Cartridge Type 1 or
  pre-inked pad incl. pad holder, depends on width of inner frame
• Metal frame, highly finished
• Net weight: about 470 g / 16 oz.

Accessories:

Colorbox Ink-Cartridge Type 1 up to 7 wheels or pre-inked pad incl. pad holder.
Model RF342 order CAT15, Models RF340 thru 344 can also take category 10 pads and holders.

• On request, depends on width of inner frame
