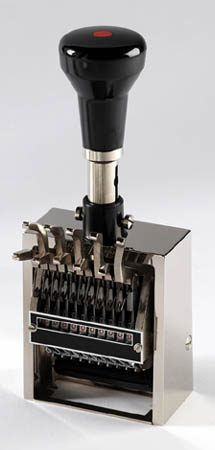

Key-Set Lever Machines


Model Sample Imprints
Style
Size
Wheels
301
Gothic
5/64"
6










Please Note: Sample imprints may appear larger or smaller than actual size.
Please refer to size specifications or print catalog for accuracy.



 Special features:

  • key set numberer from 6 to 22 wheels
  • easy setting of random numbers with ‘visible’ control
  • exact positioning of imprint due to line indicator at base plate

Technical Data:

  • Wheels 6 to 22 or more, depending on figure size,
    made from special alloy or steel
  • Wheels with 12 fields, 0 to 9, oblique and a blind field
  • Actions are set by individual levers
  • Figure size: 3.5 mm / 4.5 mm / 5.5 mm / 6.5 mm
  • Figure style: Block
  • Self-inking: pre-inked pad incl. pad holder
  • Metal frame, highly finished
  • Net weight: 6 wheels- about 710 g / 24 oz., 10 wheels - about 920 g / 32 oz.

Special arrangements with special wheels are available at extra cost.

Accessories:

Pre-inked pad incl. pad holder in black

  • On request, depends on width of inner frame
  • Dry pads and holders

Only use ami/REINER numbering machine ink in order to ensure long lasting
quality impressions and function. Available in .5 oz., 2 oz., and quarts (black, red, blue, and green).
