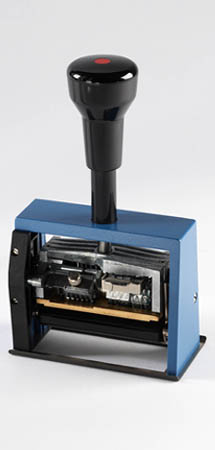

Numberer with Date and Textplate, Model DN65a

Sample Imprints
Style
Size
Wheels
Roman/ Gothic
5/32"
6

Available text-space
Engraving
Cut-out window for the sheets


Please Note: Sample imprints may appear larger or smaller than actual size.
Please refer to size specifications or print catalog for accuracy.



Special features:

  • strong and light weight
  • date in figures or with abbreviated months, years in full
  • extra large textplate made to individual requirements, multiline
  • date is set by thumb lever

Technical Data:

  • 6 digit numbering with wheels of special alloy,
    5 wheels with automatic action
  • Non-sinking zeros
  • Date right, other configurations on demand
  • Textplate 65 x 30 mm (brass unengraved) 2 1/2" x 1 1/8"
  • Actions: 0x, 1x, 2x, 3x and 4x repetition
  • Figure size: 4.0 mm / 5/32"
  • Figure style: Roman (number) / Gothic  (date)
  • Self-inking: pre-inked pad incl. pad holder
  • Metal frame of magnesium, enamel painted
  • Net weight: about 600 g / 18 oz.

Accessories:

Pre-inked pad, pad holder - category 35

  • Black: Standard or Dry

Only use ami/REINER numbering machine ink in order to ensure long lasting
quality impressions and function. Available in .5 oz., 2 oz., and quarts (black, red, blue, and green).
